TEKO
Astra-43A

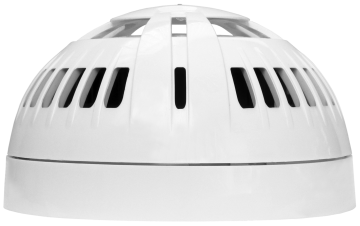

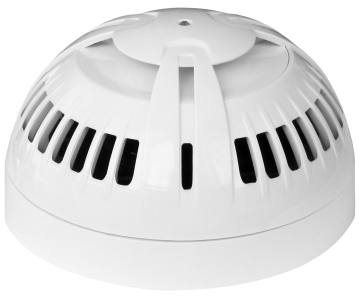

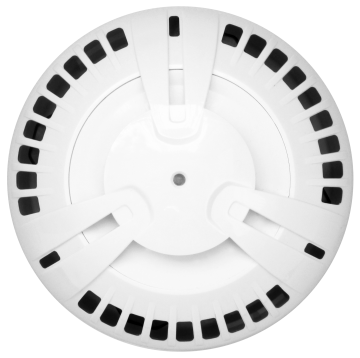

Addressable heat detector
The detector is designed for detecting fixed temperature or rate-of-rise, forming a ‘fire alarm’ notification and transferring the notification to the Astra-A RPA via Signaling Line Circuit (SLC). Compatible with Control Panels: Astra–812 Pro or Astra–8945 Pro (firmware version 4_0 or version higher).
The detector is designed for detecting fixed tem-perature or rate-of-rise, forming a ‘fire alarm’ notification and transferring the notification to the Astra-A RPA via Signaling Line Circuit (SLC). Compatible with Control Panels: Astra–812 Pro or Astra–8945 Pro (firmware version 4_0 or version higher).
The detector provides measurement and transmission via SLC according to Astra-A RPA Extender parame-ter: ambient temperature (°С).
● Astra–43A is powered by Astra-A RPA Extender.
Features

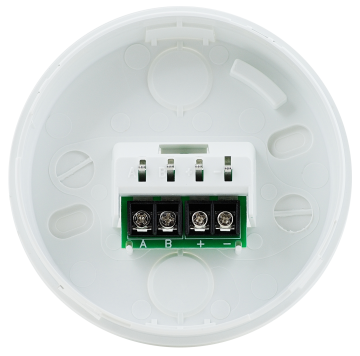

- 4-wire connection;
- powering from Astra-A RPA (24 V DC);
- testing by laser pointer Astra-942;
- transmitting temperature to the control panel via SLC.
Name | Description |
---|---|
Supply voltage | 7.5 to 27.6 V |
Maximum current consumption | 0.5 mA |
Response time at the rate of temperature rise: | |
5 °С/min | 120–500 sec. |
10 °С/min | 60-242 sec. |
20 °С/min | 30-130 sec. |
30 °С/min | 20 - 100 sec. |
Response temperature | 54-65 °С |
Overall dimensions | 106x60 mm |
Operating conditions | |
Temperature | from -30 to +70 °С |
Relative air humidity | up to 93% at +40°С (without moisture condensation) |
