Astra-942

Laser Tool

The Laser Tool is designed for:

– remote launching of the registration procedure on 433 MHz wireless system and on Astra-A addressable wired devices,
– remote testing of wireless devices of the fire detectors of 433 MHz and Astra-A systems.

The Laser Pointer is designed for:

– remote launching of the registration procedure on 433 MHz wireless system and on Astra-A addressable wired devices,
– remote testing of wireless devices of the fire detectors of 433 MHz and Astra-A systems.

Features

  • small-sized wearable device in the form of a key fob, self-powered;

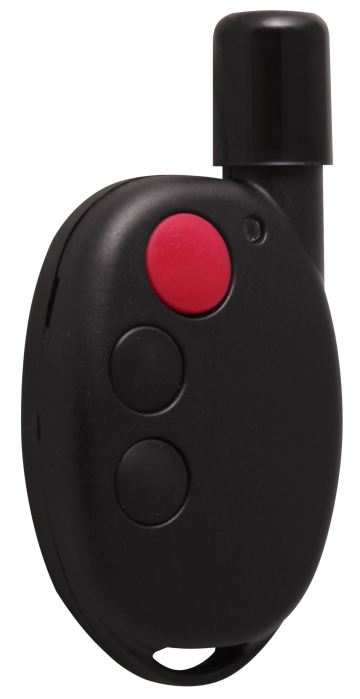

  • three control buttons:
  • red - test button,
  • middle - radio optimization button,
  • bottom - registration button;
  • lithium-manganese batteries - (2 pcs.), with a capacity of 0.55 A / h, are included in the delivery set;
  • laser pointer is included in the delivery set of Astra-8945 Pro.
Name Description
Range, m, not more:
- for fire smoke and heat detectors 10 m
- for other addressable devices 5 m
Output power radiation 5 mW
Supply voltage 2.2 to 3.0 V
Current consumption in mode transmission 10 mA
Radiation wavelength 630 to 680 nm
Overall dimensions (without cables) 77×40×15 mm
Operating conditions
Temperature from -10 to +55 °С
Relative air humidity up to 95% at +40°С (without moisture condensation)
