TEKO

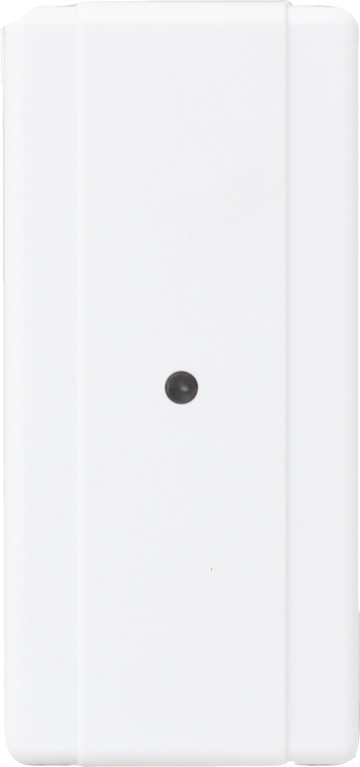

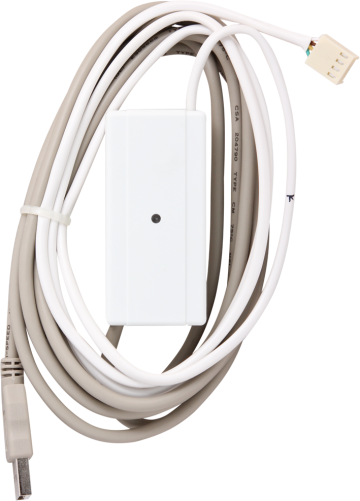

Astra-984
Interface module
Interface module is designed to connect Astra brand devices (no more than one at a time) with an RS-485 interface: Control Panel Astra Pro, Astra-823, Astra-824, Astra-863, Astra-713 to a PC in order to:
- firmware update,
- setting operating modes,
- monitoring and control of Control Panel Astra-812/Astra-8945 Pro
Connection to PC via USB port.
Powering by PC USB port.
Interface module is designed to connect Astra brand devices (no more than one at a time) with an RS-485 interface: Control Panel Astra Pro, Astra-823, Astra-824, Astra-863, Astra-713 to a PC in order to:
- firmware update,
- setting operating modes,
- monitoring and control of Control Panel Astra-812/Astra-8945 Pro
Connection to PC via USB port.
Powering by PC USB port.
Features
- Provides data exchange via interfaces RS-485 and USB;
- two-color indication of the functional state.
| Name | Description |
|---|---|
| Insulation withstand voltage | 500 V |
| Operating transmission rate | 9600 bit/sec |
| Current consumption from the USB side | 40 mA |
| Overall dimensions (without cables) | 70x33x15 mm |
| Max USB cable length | 2 m |
| Max RS-485 interface line cable length | 1 m |
| Weight | 0.130 kg |
| Operating conditions | |
| Temperature | from -30 to +50 °С |
| Relative air humidity | up to 95% at +35°С (without moisture condensation) |
