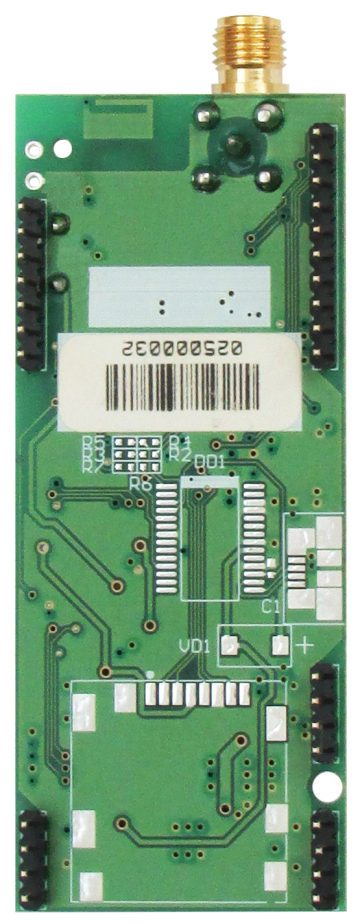

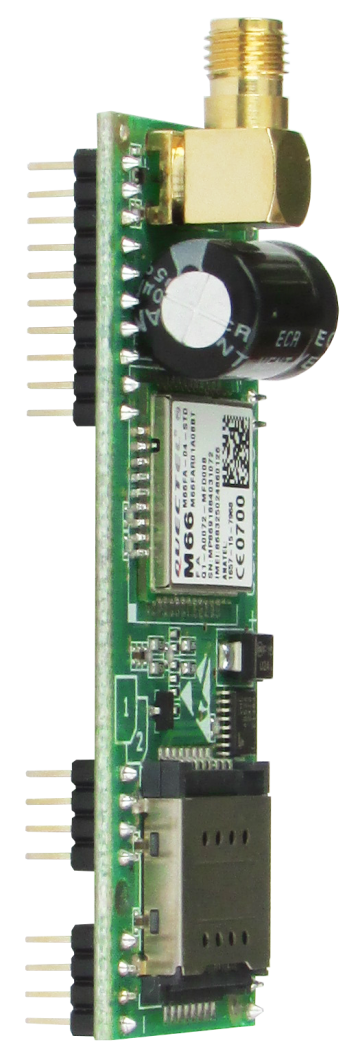

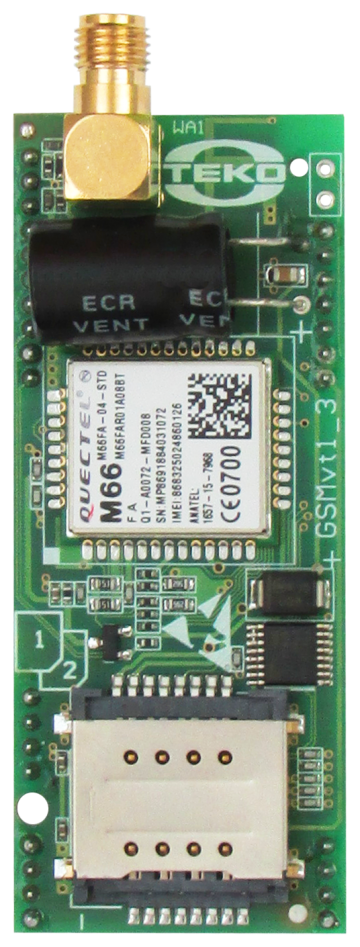

Astra-GSM (PAK Astra)

Communication module

Module is designed for operation as part of the Astra-8945 Pro, Astra-812 Pro control panels.

The module is designed to exchange information via mobile cellular communication channels GSM standard 850/900/1800/1900 MHz (GPRS Class 12) for the purpose:
   – data exchange between Astra cloud server and CP (using GPRS technology),
   – sending and receiving SMS, remote control commands of the Control Panel,
   – transmission of voice messages to user phones (unavailable for English and Spanish versions of Control panels),
   – remote monitoring and control of the Control Panel via the Internet.

Module is designed for operation as part of the Astra-8945 Pro, Astra-812 Pro control panels.

The module is designed to exchange information via mobile cellular communication channels GSM standard 850/900/1800/1900 MHz (GPRS Class 12) for the purpose:
   – data exchange between Astra cloud server and CP (using GPRS technology),
   – sending and receiving SMS, remote control commands of the Control Panel,
   – transmission of voice messages to user phones (unavailable for English and Spanish versions of Control panels),
   – remote monitoring and control of the Control Panel via the Internet.

Features

  • 2 SIM cards
  • setup via Astra-812 Pro control panel menu and / or using the Astra Pro PKM configuration module
  • receiving text SMS control commands from mobile phones and transmitting it to the Control Panel
  • account balance request of a valid SIM-card by SMS-command
  • antenna connector type - SMA-Female
  • GSM antenna BY-3G-05 included in the delivery set, cable length 2.5 m.
Name Description
Number of information recipients 8
Number oа supported SIM-cards 2
Average current consumption of 812 Pro, 8945 Pro at voltage 12 V (24 V) 120 (80) mA
Overall dimensions 74x28x18 mm
Weight 0.015 kg
Operating conditions
Temperature from -10 to +55 °С
Relative air humidity up to 93% at +40°С (without moisture condensation)

Manuals

GSM-РАС-v1_5_en.pdf
