Astra-LAN (PAK Astra)

Communication module

Module is designed for operation as part of the Astra-8945 Pro, Astra-812 Pro.

Module provides information exchange with the Astra server via the Ethernet 10/100 Base-T network interface for the purpose of remote control and monitoring of the Control Panel (Pro series).

Features

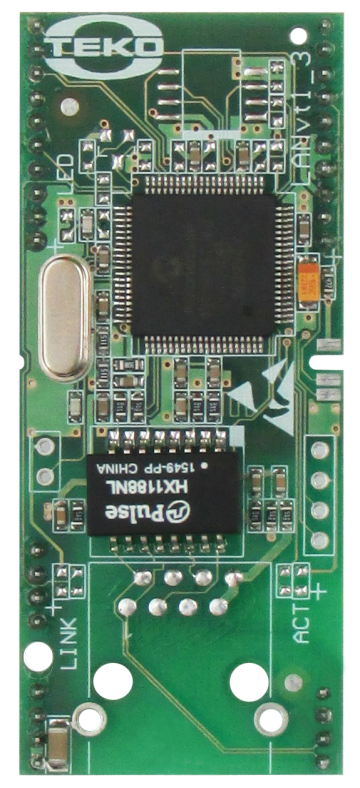

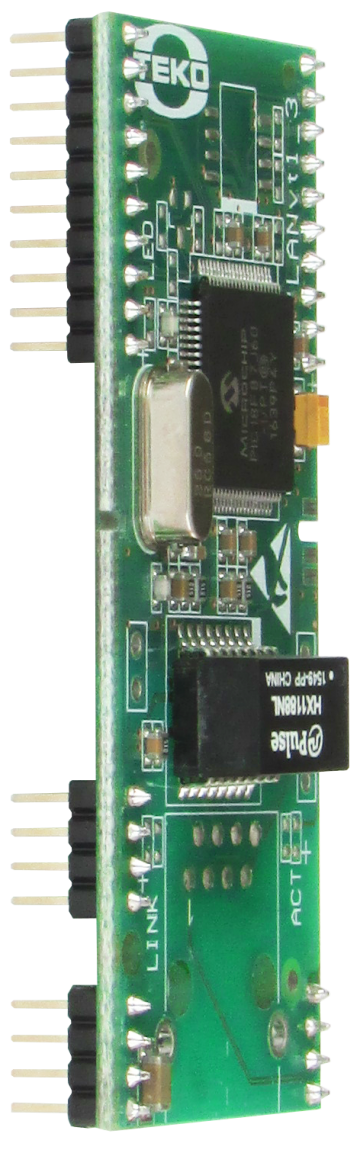

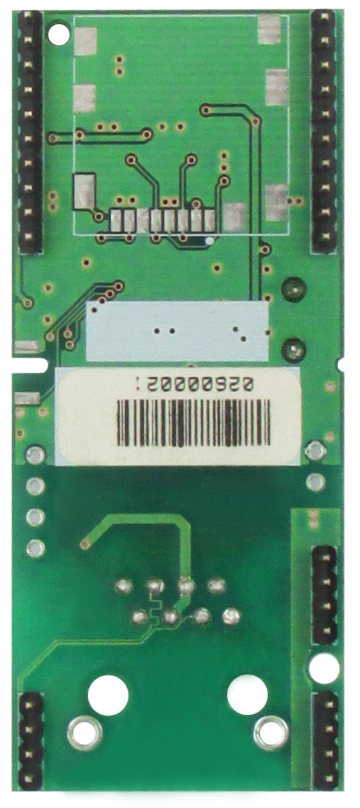

Design of the module provides for installation on the PCB of the Pro series control panel using connectors
support for dynamic and static IP routing in ISP networks (through a router)
used transmission protocol in Internet networks - TCP/IPv4
configuring the IP stack and DNS servers - manually according to the parameters passed from the provider or network administrator, or automatically from the DHCP server in the local network
setup via Astra-812 Pro control panel menu and / or using the Astra Pro PKM configuration module

Name	Description
Average current consumption of 812 Pro, 8945 Pro at voltage 12 V (24 V)	170 (120) mA
Communication line	Ethernet
Overall dimensions	65×28×14 mm
Weight	0.013 kg
Operating conditions
Temperature	from -10 to +55 °С
Relative air humidity	up to 93% at +40°С (without moisture condensation)

Manuals

LAN-РАС-v1_5_en.pdf
