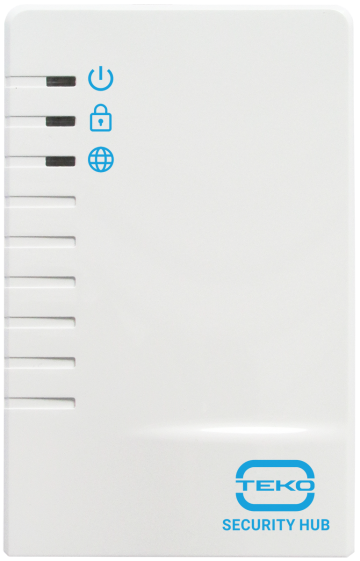

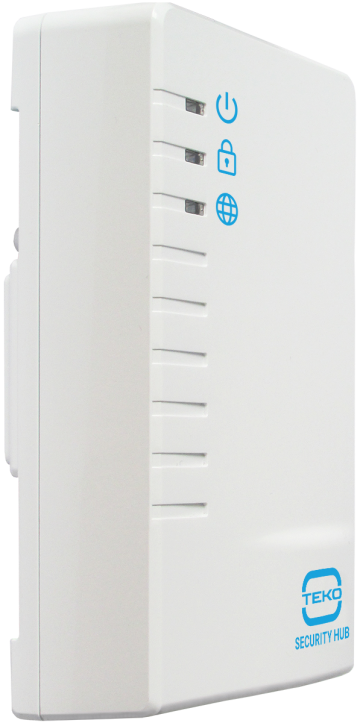

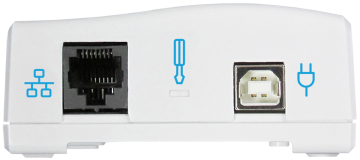

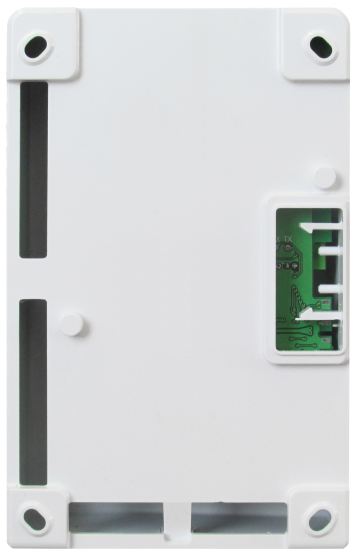

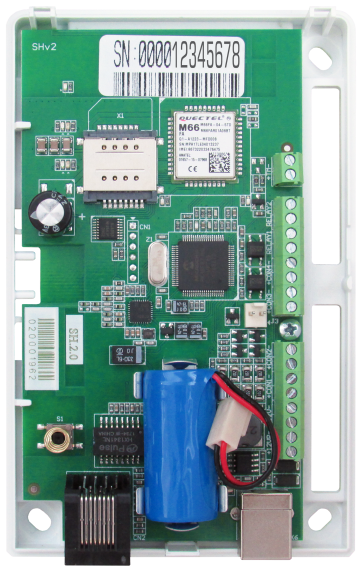

Controller Security Hub

System controller

Controller is intended for the organization of security, fire, alarm, emergency and other types of alarm system at the facility.

Controller is intended for the organization of security, fire, alarm, emergency and other types of signaling at the facility.

Controller is intended for:
- receiving information from wireless detectors on a radio channel 433 MHz,
- monitoring the status of hardwired detectors connected to the "Zone" inputs of the controller,
- data exchange between the controller and the cloud server via the internet - GSM cellular radio (GPRS) and Ethernet wired communication in encrypted form.

Features

supports 32 wireless devices;
data exchange using:
- Ethernet 10 BASE-T and the provider's network,
- SIM card (GPRS / EDGE) of a GSM mobile operator;
configuring and control using mobile App and desktop App;
powering from:
- external power supply 12 V (not included),
- backup external power supply 12 V (not included);
- mains power network 100-240 V AC 50/60 Hz using adapter (not included) and USB 2.0 port B 5 V 1 A;
lithium-ion (Li-Ion) rechargeable backup battery of standard size 2/3 A with a nominal voltage of 3.7 V, capacity of 600 or 700 mAh;
Touch Memory (iButton) input to connect iButton readers or Astra-KTM-S touch memory keypad;
4 configurable inputs;
2 configurable signaling relays.

Name	Description
Wireless coverage range	100 m
Operating frequency	433 MHz
Powering from external power supply:
voltage of the main (terminals + 12V-) and backup (terminals + 12VR-) power supply	10.5 to 13.6 V
max current consumption	300 mA
rated current consumption	150 mA
Powering from USB adapter:
mains power voltage	110 to 240 V AC
power consumption	5 W
voltage of the adapter	5 V +/- 5%
max current consumption	500 mA
rated current consumption	200 mA
Powering from backup battery:
battery voltage	3.3 to 4.2 V
average lifetime of the battery	4 to 8 hours
battery charge time	10 hours
Hardwire zone resistance (intrusion type):
Norm	3 to 5 kOhm
Alarm	0 to 3 and more than 5 kOhm
Hardwire zone resistance (fire alarm type):
Norm	3 to 5 kOhm
Fire alarm	1.5 to 3 and 5 to 12 kOhm
Failure	0 to 1.5 and more than 12 kOhm
Hardwire zone resistance (fire alarm type double event):
Norm	3 to 5 kOhm
Fire alarm	0 to 1.5 and 5 to 12 kOhm
fire danger	1.5 to 3 kOhm
Failure	more than 12 kOhm
Relays specification:
Max load voltage	100 V
Max load current	0.1 A
Open collector specification:
Max load voltage	24 V
Max load current	0.25 A

Boot time	60 sec
Max length of TM	15 m
Overall dimensions	136 × 86 × 38 mm
Weight	0.14 kg
Temperature range	-10 to +50 °С
Relative air humidity	up to 98% at +40 °С
