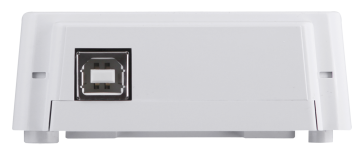

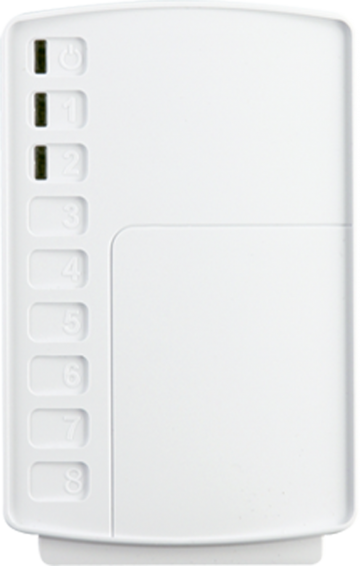

TTD Astra-Y

TTD – Transmitting Terminal Device - is intended for:

 – controlling two own alarm loops and processing system events by built-in      indicators, 3 outputs (Relay 1, Relay 2, OC) and transmitting signals to RTD via radio;
 – receiving signals from CP connected through LIN interface and transferring them to receiver (RTD) via radio.
 – retransmitting of the signals.

TTD – Transmitting Terminal Device - is intended for:

 – controlling two own alarm loops and processing system events by built-in      indicators, 3 outputs (Relay 1, Relay 2, OC) and transmitting signals to RTD via radio;
 – receiving signals from CP connected through LIN interface and transferring them to receiver (RTD) via radio.
 – retransmitting of the signals.

Features

  • Wireless coverage range with included whip antenna up to 3400 m (in line of sight);
  • Wireless coverage range with external 3 dB antenna up to 12400 m (in line of sight);
  • 2-level retransmission via another TTDs;
  • 3 modes: standalone, extended and radio extender mode;
  • standalone mode: TTD controls 2x built-in hardwire zones;
  • extended mode: using Astra-712/x control panel as an extender up to 8 hardwired zones;
  • radio extender mode: repeater mode the status of transmitter Zones translated to receiver relays;
  •  radio supervision;
  • tampering control;
  • configuring using software ARM-Y or jumpers;
  • whip antenna included;
  • external antennas supported.
Name Description
Operating frequency  433 MHz
Number of frequency channels 16
Transmitter power 10/30/100 mW
Wireless coverage range:
- standard whip antenna
- external 3 dB antenna (power 10/30 mW)
- external 3 dB antenna on transmitter and receiver (power 100 mW)
2500/3400 m
4500/8700 m
12400 m
Hardwired zones specification:
hardwire zones voltage 10.5 to 15 V
short circuit current 20 mA
current for powering active hardwired detectors 3 mA
Integration time of hardwired zones:
intrusion zone 500 msec
fire alarm zone 300 msec
Zone resistance:
Norm 3 to 5 kOhm
Alarm 0 to 3 or more than 5 kOhm
Fire alarm 1.5 to 3 or 5 to 12 kOhm
Failure 0 to 1.5 or more than 12 kOhm
Zone resistance (fire alarm double event mode):
Norm 3 to 5 kOhm
Fire alarm 0 to 1.5 or to 5 to 12 kOhm
Fire danger 1.5 to 3 kOhm
Failure more than 12 kOhm
Supply voltage 10.5 - 15 V
Max current consumption 180 mA
Boot time of receiver 8 sec
Max load voltage of built-in relay 100 V
Max load current of built-in relay 100 mA
Max load current of open collector output 100 mA
Max load voltage of open collector output 70 V
Interface line LIN length (at R <100 Ohm, C < 0.033 uF) 200 m
Temperature range -10 to +50 °С
Relative air humidity up to 95% at +35 °С
IP protection IP41
