Glass break detector
The detector is designed to detect destruction of glasses, glazed structures of enclosed area and generate an alarm notification by opening of signaling relay contacts.

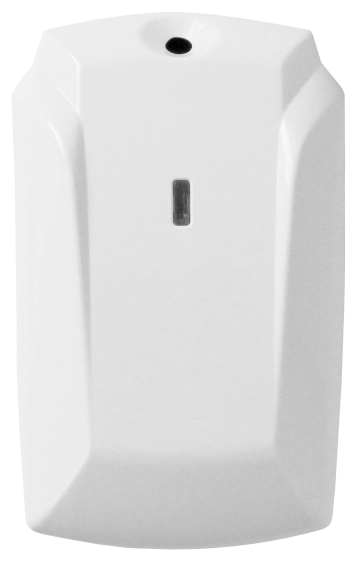

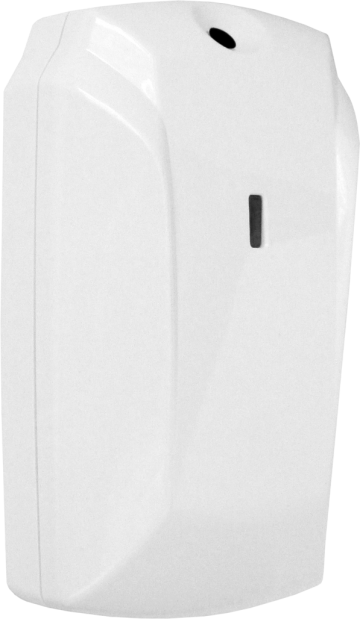

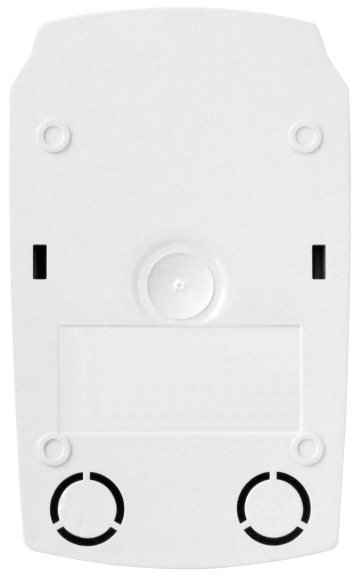

TEKO
Astra-GB
Glass break detector
The detector is designed to detect destruction of glasses, glazed structures of enclosed area and generate an alarm notification by opening of signaling relay contacts.
Features
- detection of destruction of ordinary glass, protected by a polymer film, reinforced, patterned, multilayer building, tempered flat;
- microprocessor analysis;
- discrete sensitivity adjustment;
- "alarm memory" mode
- tampering control;
- optoelectronic relay.
| Parameter | Value |
|---|---|
| detection zone range | 6 m |
| recommended installation height | 2 m |
| horizontal viewing angle | 120° |
| supply voltage | 8 to 15 V |
| max current consumption | 12 mА |
| resistance of the circuit included in the alarm loop | 6 - 16 Ohm |
| Overall dimensions | 87х55х28 mm |
| Temperature range | from -20 to +50 °С |
| Relative humidity | up to 95% at +35 °С |
| IP protection | IP30 |
