Panic button
The detector is untended for manually switching on the alarm signal by pressing the button and transferring the alarm signal via 2-wire line.
TEKO

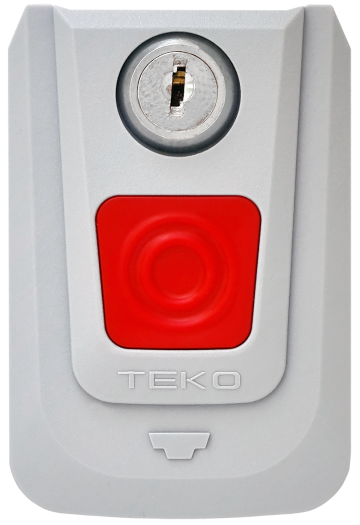

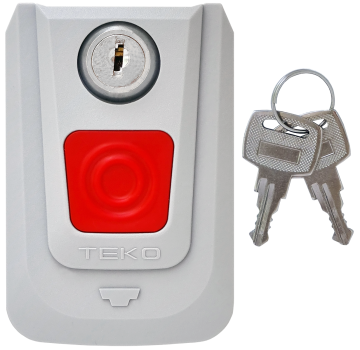

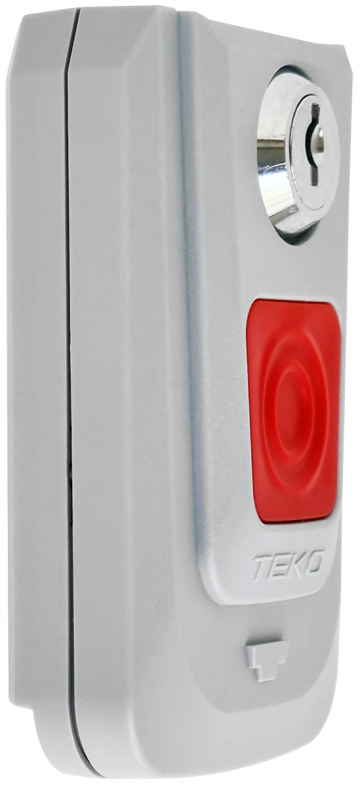

Astra-321
Panic button
The detector is untended for manually switching on the alarm signal by pressing the button and transferring the alarm signal via 2-wire line.
Features

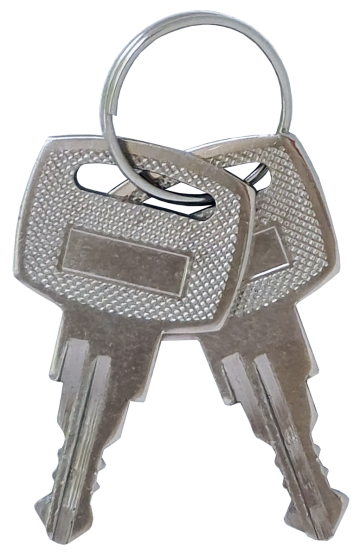

- metal lock and individual unlock keys;
- fixing the button when pressed;
- connection terminals for opening / closing the loop.
| Parameter | Value |
|---|---|
| Maximum switching voltage | 72 V |
| Maximum switching current | 0.2 A |
| Overall dimensions | 87х60х30 mm |
| Weight | 0.08 kg |
| Temperature range | -30 to +50 °С |
| Relative humidity | up to 95% at +25 °С |
| IP protection | IP30 |
