Motion detector (pet immune)
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
The detector is insensitive to pets (up to 20 kg).
TEKO

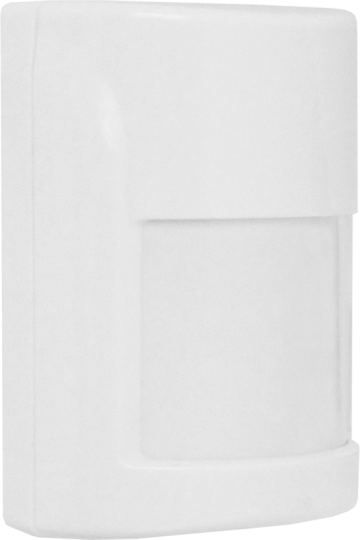

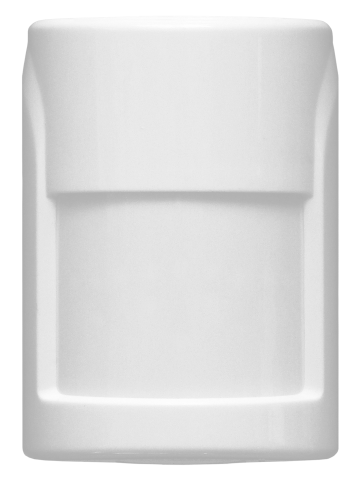

Astra-517 ver. P
Motion detector (pet immune)
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
The detector is insensitive to pets (up to 20 kg).
Features
- insensitive to pets (up to 20 kg);
- volumetric lens;
- no antisabotage zone;
- microprocessor analysis;
- tampering control;
- temperature compensation;
- self-testing;
- optoelectronic relay;

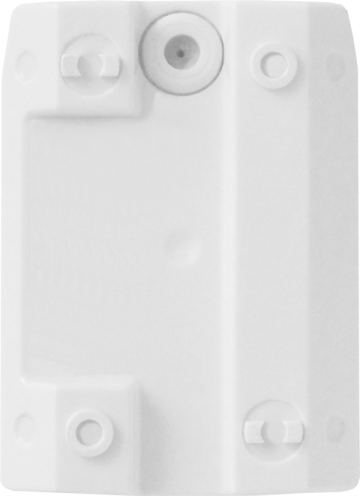

- ball bracket included.
| Parameter | Value |
|---|---|
| detection zone range | 10 m |
| horizontal viewing angle | 90° |
| recommended installation height | 2.2 - 2.4 m |
| resistance to external light | 6500 lx |
| supply voltage | 8 to 15 V |
| max current consumption | 15 mА |
| resistance of the circuit included in the alarm loop | 16 Ohm |
| Overall dimensions | 70×51×41 mm |
| Temperature range | from -30 to +50 °С |
| Relative humidity | up to 98% at +25 °С |
| IP protection | IP41 |
