Motion detector
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
TEKO

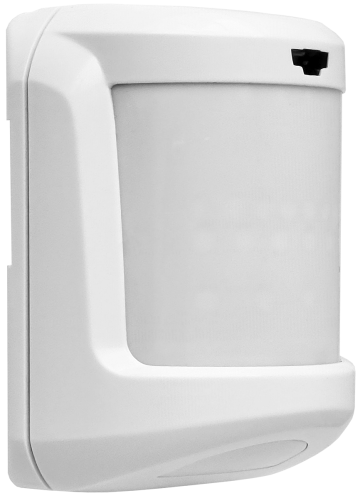

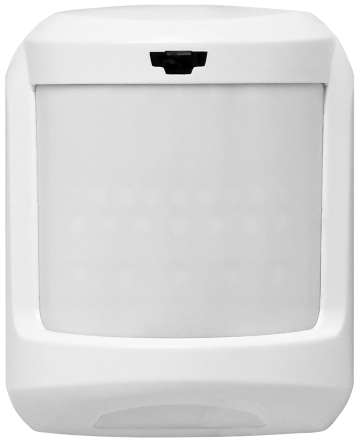

Astra-5 ver. A
Motion detector
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
Features
- volumetric lens;
- antisabotage zone;
- microprocessor analysis;
- tampering control;
- temperature compensation;
- self-testing;
- optoelectronic relay;
- bracket included.
| Parameter | Value |
|---|---|
| detection zone range | 12 m |
| horizontal viewing angle | 90° |
| recommended installation height | 2.3 - 2.5 m |
| resistance to external light | 6500 lx |
| supply voltage | 9 to 15 V |
| max current consumption | 12 mА |
| resistance of the circuit included in the alarm loop | 6 - 16 Ohm |
| Overall dimensions | 75×63×44 mm |
| Weight | 0.06 kg |
| Temperature range | from -30 to +55 °С |
| Relative humidity | up to 98% at +25 °С |
| IP protection | IP41 |
