Motion detector (ceiling mount)
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
TEKO

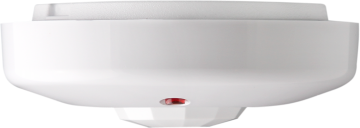

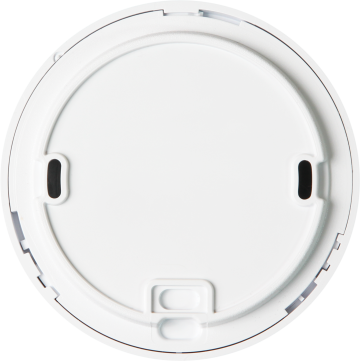

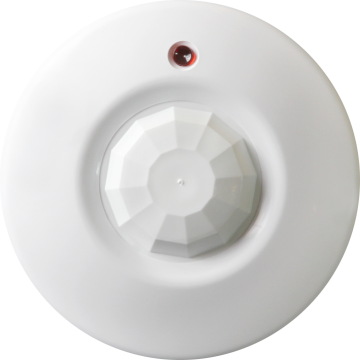

Astra-7 ver. A
Motion detector (ceiling mount)
Detection of intrusion into the protected area and triggering an alarm notification by opening the output contacts of the signal relay.
Features
- ceiling mount, 360° detection zone;
- max installation height - 3.6 m;
- microprocessor analysis;
- discrete sensitivity adjustment;
- temperature compensation;
- "alarm memory" mode;
- tampering control;
- optoelectronic relay.
| Parameter | Value |
|---|---|
| detection zone diameter at installation height 3.6 m | 9 m |
| detection zone diameter at installation height 2.4 m | 6 m |
| recommended installation height | 2.4 - 3.6 m |
| viewing angle | 360° |
| resistance to external light | 6500 lx |
| supply voltage | 8 to 15 V |
| max current consumption | 15 mА |
| resistance of the circuit included in the alarm loop | 8 Ohm |
| Overall dimensions | 91×31 mm |
| Temperature range | -30 to +50 °С |
| Relative humidity | up to 95% at +35 °С |
| IP protection | IP41 |
