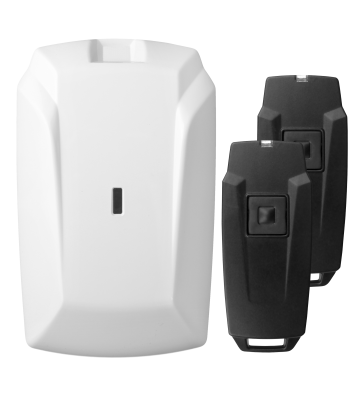

Receiver (433 MHz) + 2x keyfobs

Wireless system with panic buttons: transmits alarm signals through registered keyfobs (Astra-TRC) through the radio channel to the receiver (Astra-RVC) and generates a signal that activates the integrated relay.

Remote control of electrical mechanisms: transmission of signals from the registered Astra-TRC via the radio channel to Astra-RVC and activation of the built-in relay to control the mechanisms (gates, barriers).

Receiver (433 MHz) + 2x keyfobs

Wireless system with panic buttons: transmits alarm signals through registered keyfobs (Astra-TRC) through the radio channel to the receiver (Astra-RVC) and generates a signal that activates the integrated relay.

Remote control of electrical mechanisms: transmission of signals from the registered Astra-TRC via the radio channel to Astra-RVC and activation of the built-in relay to control the mechanisms (gates, barriers).

Características

  • The keyrings are powered by CR 2430 batteries (included in delivery);

  • Battery discharge LED indication;

  • 2 modes of the signaling relay of the Astra-RVC:
    - opening of contacts for a programmed time from 2 sec to 30 min,
    - opening (closing) contacts until the next command (trigger mode);

  • built-in antenna, external antenna connection supported.

Name Description
Wireless coverage range 300 m
Operating frequency  433 MHz
Average battery lifetime (key fob)  2 years
Power voltage of receiver 10.5 - 15 V
Current consumption of receiver 50 mA
Boot time of receiver 10 sec
Max load voltage of built-in relay (at a load current 0.1 A) 100 V
Overall dimensions of a receiver (Astra-RVC) 101х63х32 mm
Overall dimensions of a key fob (Astra-TRC) 74х33х14 mm
Temperature range 0 to +50 °С
Relative air humidity up to 95% at +35 °С
IP protection IP30
