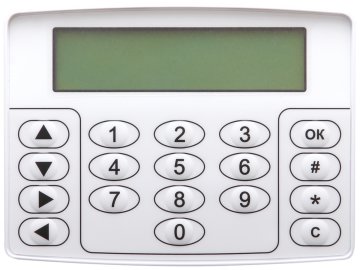

CP Astra-Y

Control panel for configuring and monitoring Astra-Y system.

max capacity of the Astra-Y system with CP Astra-Y:
- 250 of TTD
RS-485 interface for connecting up to 4 RTD Astra-Y receivers;
LIN interface for connecting additional devices (power relay units Astra-821, indication units Astra-861);
keypad for configuring the system;
system log for 1500 events.

Name	Description
Supply voltage	10.5 - 15 V
Max current consumption	200 mA
Boot time of receiver	15 sec
Max load voltage of built-in relay	100 V
Max load current of built-in relay	100 mA
Max load current of open collector output OC1	1.5 A
Max load current of open collector output OC2	100 mA
Max load voltage of open collector output OC1	30 V
Max load voltage of open collector output OC2	12 V
Interface line LIN length	200 m
Interface line RS-485 length	1000 m
Overall dimensions	110х145х31 mm
Temperature range	-10 to +55 °С
Relative air humidity	up to 93% at +40 °С
IP protection	IP41
