Astra-361 ver. RF

Wireless water leak detector

The detector is designed to detect water leakage and transmit a notification to the controller Security Hub.

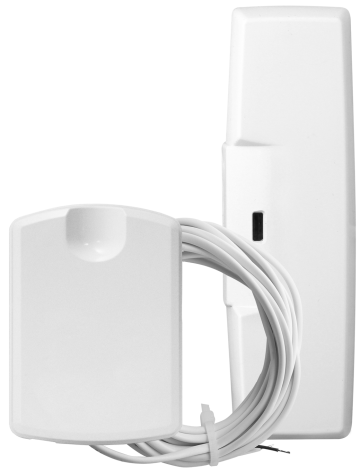

The detector is designed to detect water leakage and transmit a notification to the controller Security Hub. The detector unable to detect distilled water leaks. When the water level falls, the detector will selfrecover. The detector consists of a wireless transmitter and a hardwired water leakage detector.

Features

detection of water leakage of any chemical composition (except for distilled water);
Powering from 3V CR123A battery (included in the delivery set);
Average battery lifetime - 5 years;
Transmitting the value of residual capacity of the battery;
Tampering control;
IP41.

Name	Description
Wireless coverage range	100 m
Operating frequency	433 MHz
Supply voltage	2.1 to 3.0 V
Transmitter power	10 mW
Overall dimensions of transmitter	109х34х27 mm
Overall dimensions of detector	65х47х23 mm
Max length of the cable	3 m
Temperature range	0 to +50 °С
Relative air humidity	up to 95% at +35°С
IP protection	IP41

Manuals

361rk-v4_1_instr_en.pdf
