TEKO
Astra-3731

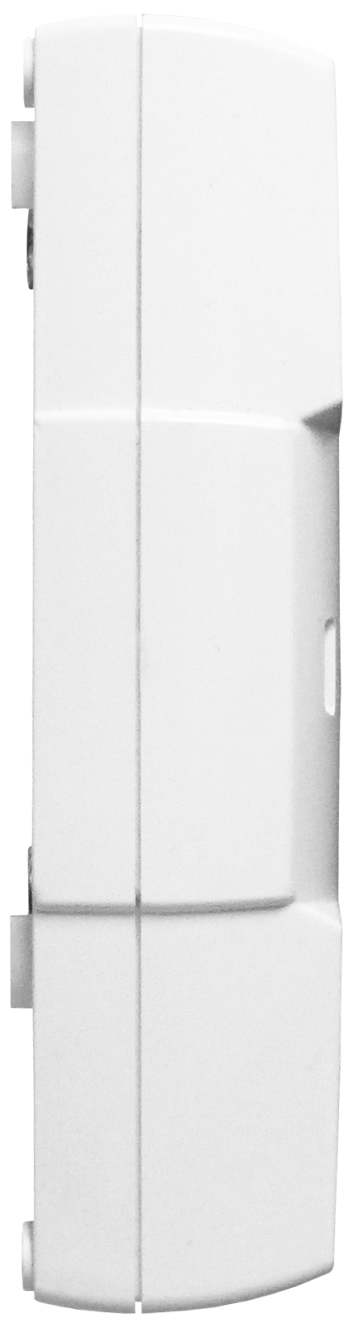

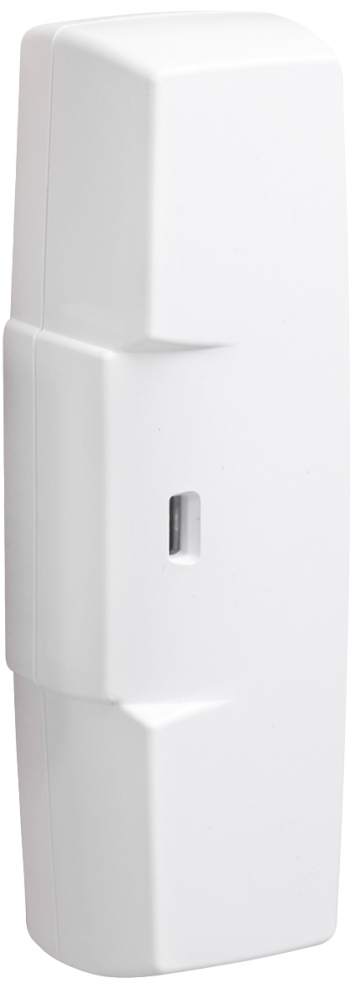

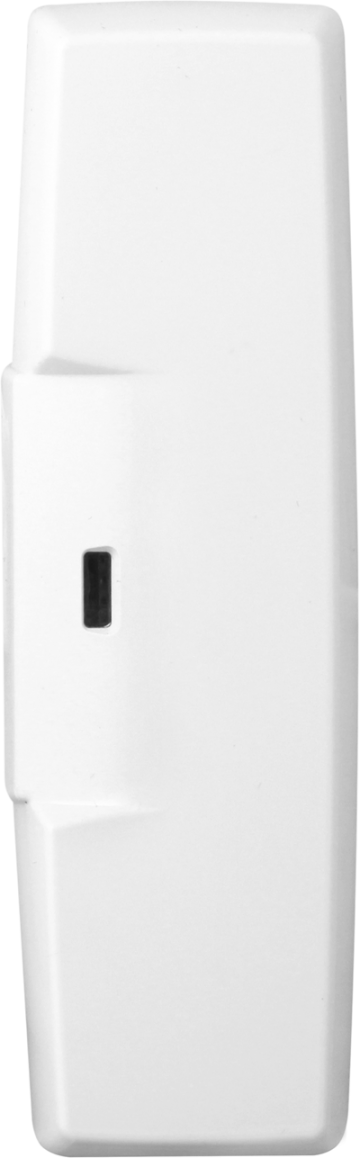

Wireless temperature detector
The detector is designed to measure the temperature at the installation site and transmit by radio to the Security Hub.
Temperature control is carried out using a built-in temperature sensor and / or a DS 18B20 temperature sensor (not included in the delivery set) connected to the detector terminal block. Maximum cable length - 3 m
The detector is designed to measure the temperature at the installation site and transmit by radio to the Security Hub.
Temperature control is carried out using a built-in temperature sensor and / or a DS 18B20 temperature sensor (not included in the delivery set) connected to the detector terminal block.
Maximum cable length - 3 m
Features
- terminal block for connecting an external temperature sensor DS 18B20 (not included in the delivery set). The maximum cable length is 3 m;
- lithium-thionyl-chloride battery, size AA, voltage 3.6 V, included in the delivery set;
- control of supply voltage. The detector measures and transmits via the radio channel the value of the residual capacitance of the battery simultaneously with the temperature measurement results;
- average battery lifetime - 5 years.
| Name | Description |
|---|---|
| Range of measured temperatures by built-in sensor | from -30 to +55°С |
| Range of measured temperatures by an external sensor | from -55 to 125 °С |
| Temperature measurement accuracy | 1°С |
| Wireless coverage range | 100 m |
| Operating frequency | 433 MHz |
| Transmitter power | 10 mW |
| Overall dimensions | 109х34х27 mm |
| Temperature range | -30 to +55 °С |
| Relative air humidity | up to 95% at +40°С |
| IP protection | IP41 |
