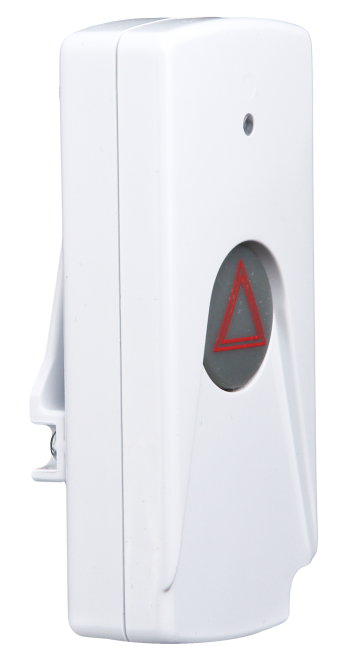

Wireless panic button

Wireless Electro-Contact Panic Button is in-tended for manual activation and transmitting an alarm signal to the Security Hub.

Wireless Electro-Contact Panic Button is in-tended for manual activation and transmitting an alarm signal to the Security Hub.

Features

  • stationary or mobile device;
  • powering from CR2430 batteries (2 pcs.) included in the delivery set;
  • supply voltage control;
  • clamp included in the delivery set.
Name Description
Operating frequency 433 MHz
Current consumption (stand-by mode) 0.008 mA
Current consumption (transmission mode) 20 mA
Wireless coverage range 1000 m
Transmitter power 10 mW
Supply voltage 2.3 to 3.0 V
Overall dimensions 86х40х20 mm
Weight 0.06 kg
Temperature range -10 to +50 °С
Relative humidity up to 98% at +40 °С
IP protection IP41
