Security Hub kit with camera

“Security Hub” kit with camera is the cloud-based alarm and Smart home system.

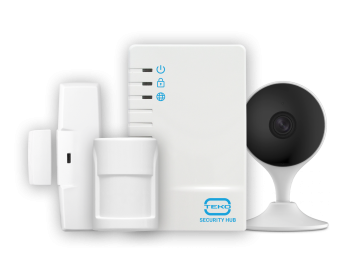

The kit with camera consists of the on-site controller “Security Hub” with a rechargeable battery, a network adapter with a USB cable, wireless motion detector (pet immune) Astra-5121, door opening magnetic contact detector Astra-3321 with batteries and Wi-Fi camera included. The functionality of the kit can be expanded by compatible devices.

The kit with camera consists of the on-site controller “Security Hub” (hereinafter referred to as the controller) with a rechargeable battery, a network adapter with a USB cable, wireless motion detector (pet immune) Astra-5121, door opening magnetic contact detector Astra-3321 with batteries and Wi-Fi camera included. The functionality of the kit can be expanded by compatible devices.

Features

The kit with camera consists of the on-site controller “Security Hub” (hereinafter referred to as the controller) with a rechargeable battery, a network adapter with a USB cable, wireless motion detector (pet immune) Astra-5121, door opening magnetic contact detector Astra-3321 with batteries and Wi-Fi camera included. The functionality of the kit can be expanded by compatible devices.
configuring and control using mobile App and desktop App Security Hub;
data exchange using:
- Ethernet 10 BASE-T and the provider's network,
- SIM card (GPRS/EDGE) of a GSM mobile operator;
SH communicates with detectors in the frequency range (434.42 ± 0.2%) MHz and supports a maximum of 32 wireless devices;
powering from:
- external power supply 12 V (not included),
- backup external power supply 12 V (not included);
- mains power network 100-240 V AC 50/60 Hz using adapter (included) and USB 2.0 port B 5 V 1 A;
lithium-ion (Li-Ion) rechargeable backup battery of standard size 2/3 A with a nominal voltage of 3.7 V, capacity of 600 or 700 mAh;
when powered by a battery, communication is provided only via the LTE NB-IoT channel (communication via a wired channel is provided only if there is access to the Internet);
when powered from a battery, the power of hardwired detectors is not provided, the zone parameters are not monitored until the external power is restored;
the controller has an F1 plug, the installation of a jumper on which ensures the operation of hardwired zones from the battery, while the length of the alarm loop should be no more than 10 m;
Touch Memory (iButton) input to connect iButton readers or Astra-KTM-S touch memory keypad;
4 configurable inputs;
2 configurable signaling relays.

Name	Description
Security Hub controller:
mains power voltage	110 to 240 V AC
power consumption	5 W
voltage of the adapter	5 V +/- 5%
max current consumption	500 mA
rated current consumption	200 mA
battery voltage	3.3 to 4.2 V
average lifetime of the battery	4 hours
battery charge time	10 hours
boot time	60 sec
Overall dimensions	136 × 86 × 38 mm
Weight	0.14 kg
Astra-5121 motion detector (pet immune):
range of detectable moving speeds	0.3 to 30 m/sec
power voltage	2.2 to 3.2 V
overall dimensions	70 х 51 х 42 mm
Astra-3321 door opening detector:
triggering distance	20 to 30 mm
recovery distance	13 to 23 mm
power voltage	2.8 to 3.6 V
overall dimensions	109 × 34 × 27 mm
Wi-Fi camera:
video	1920х1080@25FPS
matrix	2 MPixel, 1/2.7” CMOS
focal length	2,8 mm
viewing angle (horizontal)	112 °
infrared illumination	up to 10 m
Wi-Fi: EEE802.11b/g/n	up to 50 m
interface	MicroUSB
audio	built-in speaker and microphone
overall dimensions	109x66 mm
Operation conditions:
controller temperature range	-20 to +55 °С
Astra-5121 temperature range	-10 to +50 °С
Astra-3321 temperature range	-20 to +50 °С
Wi-Fi camera temperature range	-10 to +45 °С
Relative air humidity	up to 98% at +40 °С
Wireless:
Operating frequency	433 MHz
Wireless coverage range	100 m
