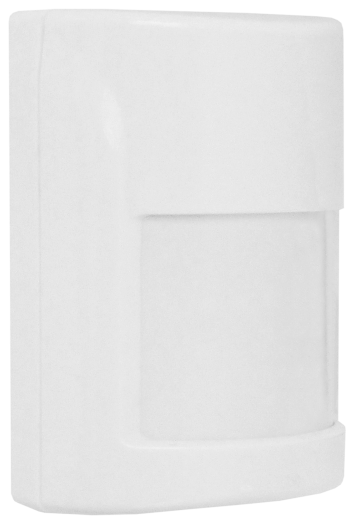

Wireless motion detector

The detector is intended for detection of an intrusion into a secure space of an enclosed area, forming an alarm notification and transmitting alarm signal to the Security Hub via radio.

The detector is intended for detection of an intrusion into a secure space of an enclosed area, forming an alarm notification and transmitting alarm signal to the Security Hub via radio.

Features

  • volumetric detection zone;
  • microprocessor analysis;
  • temperature compensation;
  • resistance to external light not less than 6500 lux;
  • tampering control;
  • average battery lifetime - 5 years;
  • transmission of the residual capacity of the battery;
  • transmission of the ambient temperature.
Parameter Value
Operating frequency 433 MHz
Current consumption (stand-by mode) 0.025 mA
Current consumption (transmission mode) 25 mA
Detection zone range 10 m
Recommended installation height 2.3-2.5 m
Supply voltage 2.2-3.0 V
Transmitter power 10 mW
Overall dimensions 70x51x42 mm
Temperature range from -20 to +50 °С
Relative air humidity up to 98% at +40 °С
IP protection IP41
