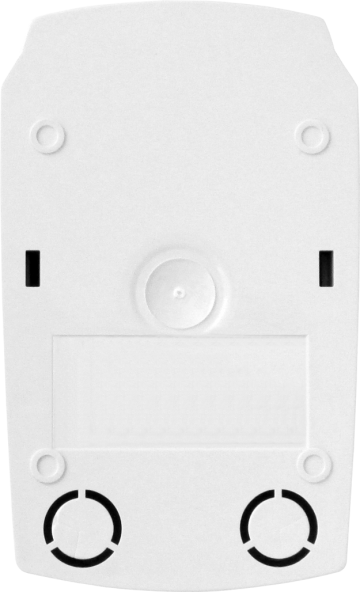

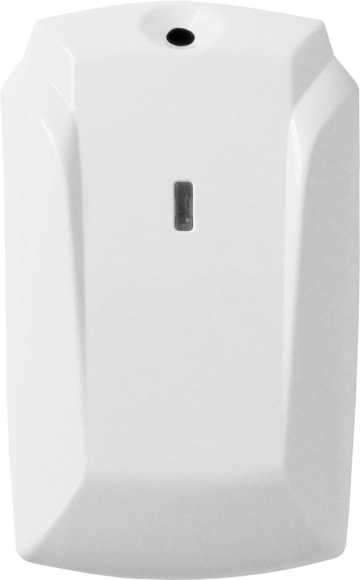

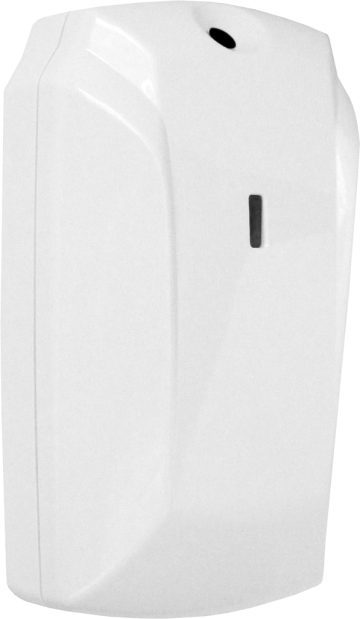

Astra-6131

Wireless glass break detector

The detector is designed to detect the destruction of glass, generate an alarm notification and transmit a notification via a radio to the Security Hub controller.

The detector is designed to detect the destruction of glass, generate an alarm notification and transmit a notification via a radio to the Security Hub controller.

Features

detection of destruction of glass, protected by a polymer film, reinforced, patterned, multilayer building, tempered flat;
sensitivity adjustment;
supports connection of "dry output" hardwired detectors to "Zone" terminal;
tampering control;
average battery lifetime - 5 years.

Name	Description
High frequency of acoustic channel	4 to 6 kHz
Low frequency of acoustic channel	100 to 200 Hz
Detection range	6 m
Recommended installation height	2 m
Operating radio frequency	433 MHz
Wireless coverage range	100 m
Transmitter power	10 mW
Current consumption (stand-by mode)	0.06 mA
Current consumption (transmission mode)	25 mA
Power supply voltage	2.4 - 3.2 V
Overall dimensions	87х54х28 mm
Temperature range	-20 to +50 °С
Relative humidity	up to 98% at +40 °С
IP protection	IP30
